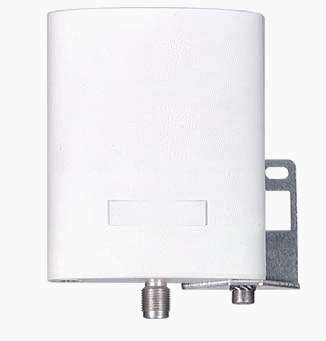

8dBi Panel, TNC fe., SPA 2400/75/8/0/V

Type: Flatpanel, directional
Specifications:
Electrical:
Frequency range: 2.300 - 2.800 MHz
Gain, typ.: 7.5 dBi
VSWR, max.: 1.5
3 dB Beam-Width, H-Plane/Azimut, typ.: 75°
3 dB Beam-Width, E-Plane/Elevation, typ.: 70°
Side Lobes, min.: n/a
Polarization: Linear Vertical
Cross polarization, min.: n/a
Front to Back Ratio, min.: 20 dB
Input power, max: 75 Watt
Input impedance: 50 Ohm
Lightning protection: n/a
Electrical downtilt: No
Mechanical
Dimensions: (H*W*D) 101 * 80 * 20 mm
Connector: TNC, Female
Back plane: n/a
Radome: ASA
Mechanical downtilt: Via mounting kit
Environmemtal
Operating temperature range: -40° C to +80° C
Storage temperature range: -40° C to +80° C
Wind load: 15 N at 160 km/h
Protection class : n/a
Flammability: n/a
Salt Fog: n/a
Shipment:
Mounting kit for pole (40 mm - 60 mm) and wall mount.
