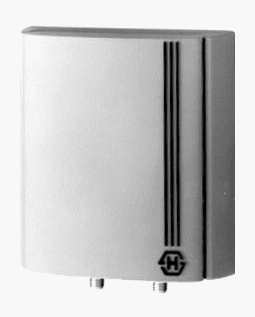

9dBi Panel, DS, TNC fe., SPA 2400/80/9/0/DS

Type: Flatpanel, directional, dual polarized
Specifications:
Electrical:
Frequency range: 2.300 - 2.500 MHz
Gain, typ.: 8.5 dBi
VSWR, max.: 1.5
3 dB Beam-Width, H-Plane/Azimut, typ.: 80°
3 dB Beam-Width, E-Plane/Elevation, typ.: 70°
Side Lobes, min.: n/a
Polarization: dual linear, ± 45° slant
Cross polarization, min.: n/a
Front to Back Ratio, min.: 18 dB
Isolation between ports: 30 dB
Input power, max: 75 Watt
Input impedance: 50 Ohm
Lightning protection: n/a
Electrical downtilt: No
Mechanical
Dimensions: (H*W*D) 101 * 95 * 32 mm
Connector: 2 * TNC, Female
Back plane: Aluminum
Radome: ASA
Mechanical downtilt: No
Environmemtal
Operating temperature range: -40° C to +80° C
Storage temperature range: -40° C to +80° C
Wind load: 15 N at 160 km/h
Protection class : n/a
Flammability: n/a
Salt Fog: n/a
Shipment:
Mounting kit for wall mount.
