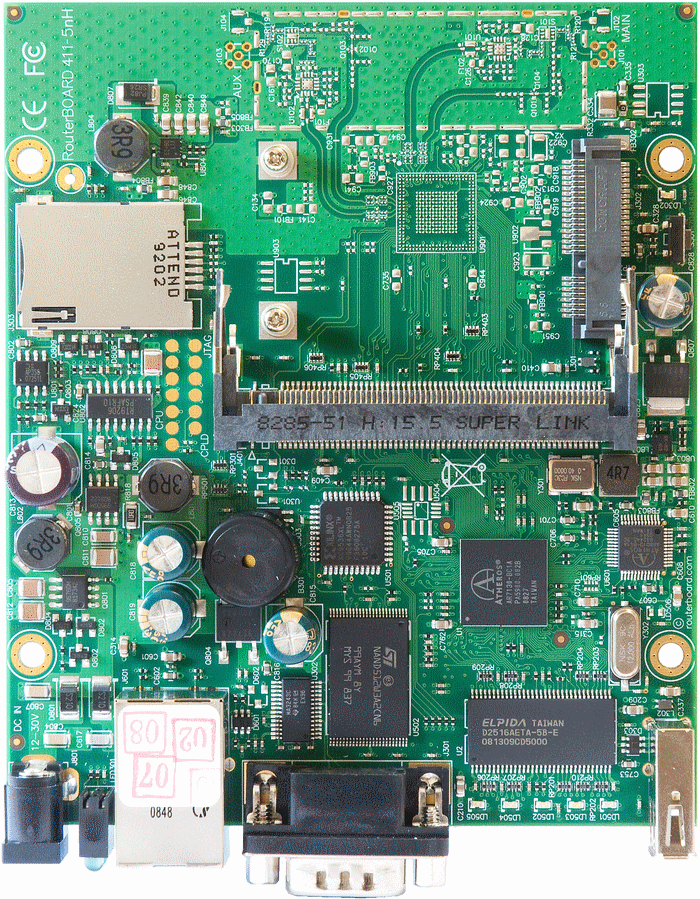

MikroTik RouterBOARD RB/411U

RouterBOARD RB/411U, 300MHz, 32MB, 1*10/100BaseT, 1*mini PCI, 1*mini PCI-E, 1*USB, L4

Architecture: MIPS-BE
CPU: Atheros AR7130, 300MHz
Memory: 32MB DDR SDRAM onboard memory
Data storage: NAND onboard memory chip
Ethernet:
- 10/100BaseT: 1 port with Auto-MDI/X
- 10/100/1000BaseT: none
- SFP-Slot: none
- Ethernet bypass: none
Hardware switch support: none
Onboard wireless chip: none
Extension Slots:
- Mini PCI: 1 slot, Type IIIA/IIIB
- Mini PCI-E: 1 slot, only for USB like cards (e.g. 3G/4G)
- USB: 1 jack, Type A, 5VDC power out
- Memory cards: None
Serial port: yes
Extras: Reset switch, Beeper, SIM Holder
LEDs: Power, NAND activity, 5 user LEDs
Power options:
- Jack: 10-28VDC
- PoE: passive PoE 8-28VDC on Ether1 (not 802.3af conform)
Power consumption: 3-12W
Sensors:
- Voltage monitor: yes
- PCB temperature monitor: none
- CPU temperature monitor: none
Dimensions: 105mm x 155mm
Temperature range: -35°C ... +70°C
MikroTik RouterOS License: Level 4
Package includes: RouterBOARD only
