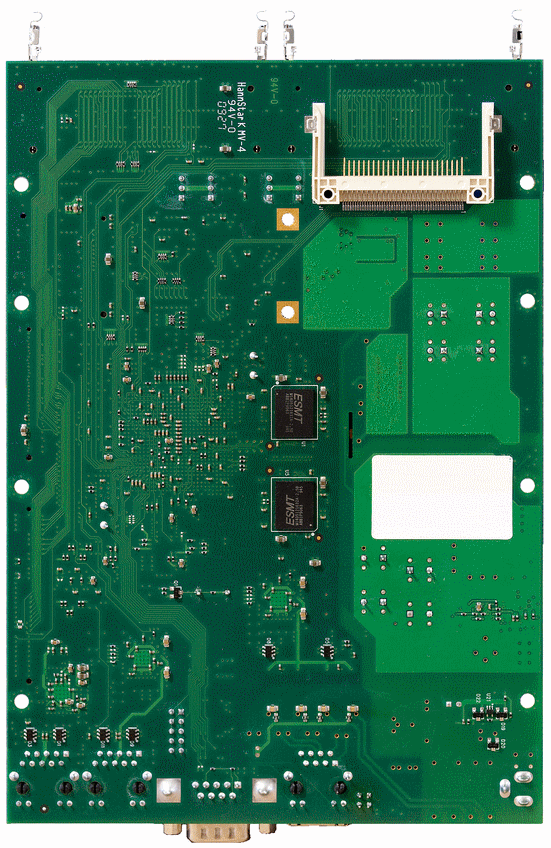

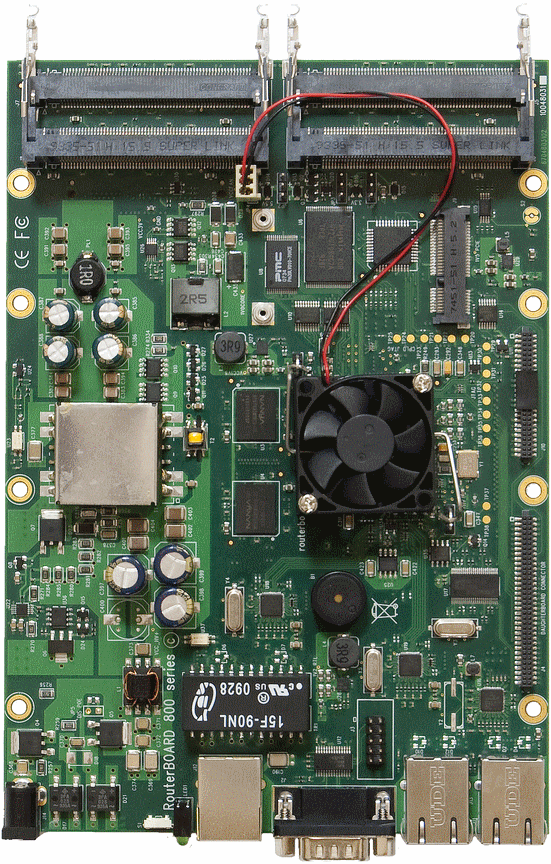

MikroTik RouterBOARD RB/800

RouterBOARD RB/800, 800MHz, 256MB, 3*10/100/1000BaseT, 4*mini PCI, 1*mini PCI-E, L6

Architecture: PPC
CPU: MPC8544, 800MHz
Memory: 256MB DDR2 SDRAM onboard memory
Data storage: NAND onboard memory chip
Ethernet:
- 10/100BaseT: none
- 10/100/1000BaseT: 3 ports with Auto-MDI/X
- SFP-Slot: none
- Ethernet bypass: none
Hardware switch support: none
Onboard wireless chip: none
Extension Slots:
- Mini PCI: 4 slots, Type IIIA/IIIB
- Mini PCI-E: 1 slots (no SIM Holder)
- USB: none
- Memory cards: 1 CF
Serial port: yes, 1 DB9 and 1 serial port header
Extras: Reset switch, Beeper, 1 PCI daughterboard port, 1 PCI-E daughterboard port, 4 Fan headers (JP1,JP3 = 3.3V, JP2,JP4 = 5.5V)
LEDs: Power, 1 user LED
Power options:
- Jack: 10-56VDC
- PoE: PoE 36-56VDC on Ether1 (802.3af conform)
Power consumption: n/a
Sensors:
- Voltage monitor: yes
- PCB temperature monitor: none
- CPU temperature monitor: none
Dimensions: 140mm x 200mm
Temperature range: -75°C ... +66°C
MikroTik RouterOS License: Level 6
Package includes: RouterBOARD only
