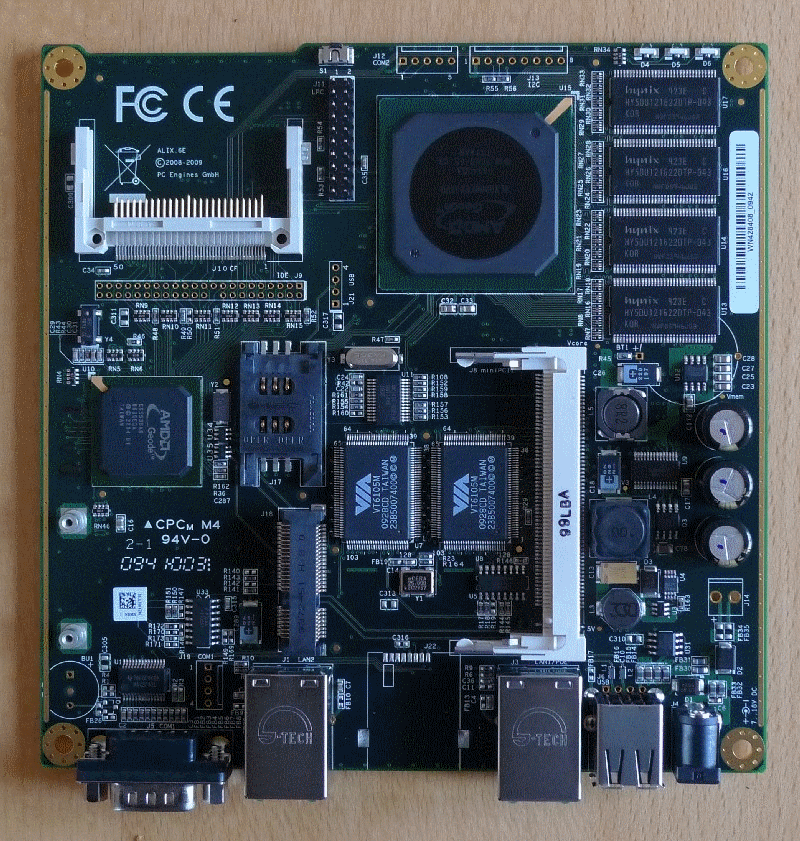

ALIX.6F2, 500MHz,256MB,2*LAN,1*mPCI,1*mPCI-E,USB,dual SIM

2 LAN / 1 miniPCI / 1 miniPCI Express / LX800 / 256 MB / USB
CPU: 500 MHz AMD Geode LX800
DRAM: 256 MB DDR DRAM
Storage: CompactFlash socket
Power: DC jack or passive POE, min. 7V to max. 20V
Three front panel LEDs, pushbutton
Expansion: 1 miniPCI slot, 1 miniPCI Express slot (USB only), LPC bus
Dual SIM sockets (switched by AC_BEEP GPIO signal)
Connectivity: 2 Ethernet channels (Via VT6105M 10/100)
I/O: DB9 serial port, dual USB port
Board size: 6 x 6" (152.4 x 152.4 mm)
Firmware: tinyBIOS
