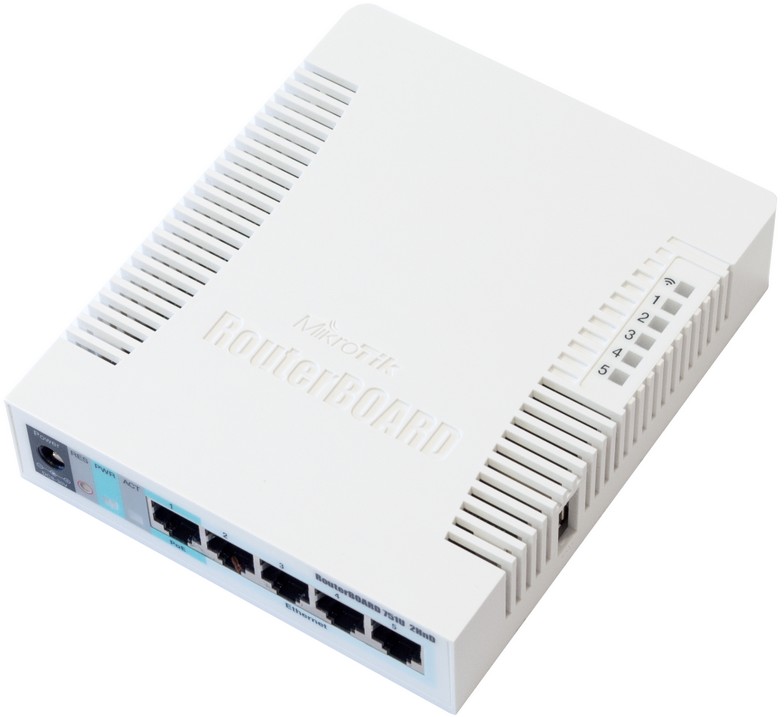

MikroTik RouterBOARD RB/751U-2HnD

RouterBOARD RB/751U-2HnD, 400MHz, 32MB, 5*10/100BaseT, 1*802.11b/g/n 2*2, 1*USB, L4

Architecture: MIPS-BE
CPU: AR7241, 400MHz
Memory: 32MB DDR SDRAM onboard memory
Data storage: NAND onboard memory chip
Ethernet:
- 10/100BaseT: 5 ports with Auto-MDI/X
- 10/100/1000BaseT: none
- SFP-Slot: none
- Ethernet bypass: none
Hardware switch support: yes, Atheros7240 for Eth2 ... Eth5
Onboard wireless chip: 1 * Atheros 2.4GHz 802.11b/g/n, 2x2 MIMO
Extension Slots:
- Mini PCI: none
- Mini PCI-E: none
- USB: 1 jack, Type A, 5VDC power out
- Memory cards: none
Serial port: none
Extras: Reset switch, Beeper

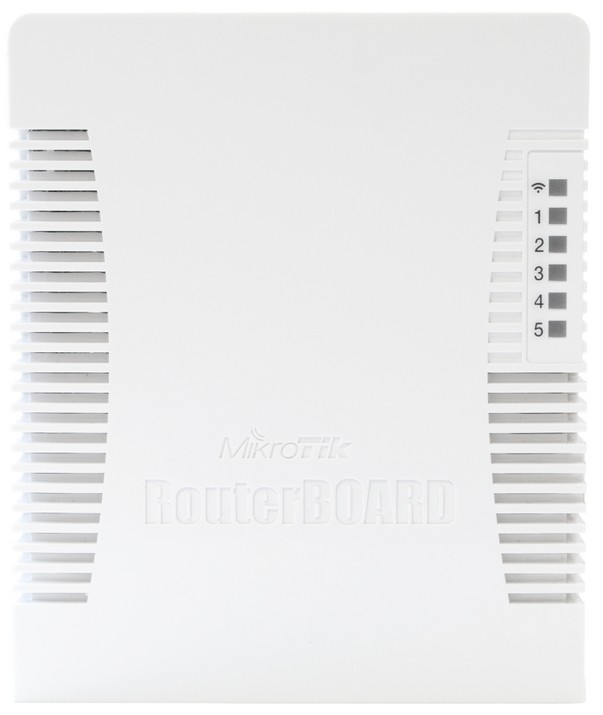

LEDs: Power, NAND activity, 5 Ethernet, 1 WLAN
Power options:
- Jack: 8-30VDC
- PoE: 8-30VDC on Ether1 (not 802.3af conform)
Power consumption: max. 7W
Sensors:
- Voltage monitor: none
- PCB temperature monitor: none
- CPU temperature monitor: none
Dimensions: 113mm x 138mm x 29mm
Temperature range: -20°C ... +50°C
MikroTik RouterOS License: Level 4
Package includes: RouterBOARD system in plastic desktop case, power supply in retail packaging

Onboard wireless features:
RX sensitivity:
- 802.11g: -96 dBm @ 6Mbps to -81 dBm @ 54 Mbps
- 802.11n: -96 dBm @ MCS0 to -78 dBm @ MCS7
TX power:
- 802.11g: 30dBm @ 6Mbps to 27dBm @ 54 Mbps
- 802.11n: 30dBm @ MCS0 to 26dBm @ MCS7
Modulations:
- OFDM: BPSK, QPSK, 16 QAM, 64QAM
- DSSS: DBPSK, DQPSK, CCK

Antenna specifications:
3 Integrated PIF antennas, max gain 2.5dBi, 1 MMCX connector
Chain0: 2 integrated antennas, 1 for RX, 1 for TX

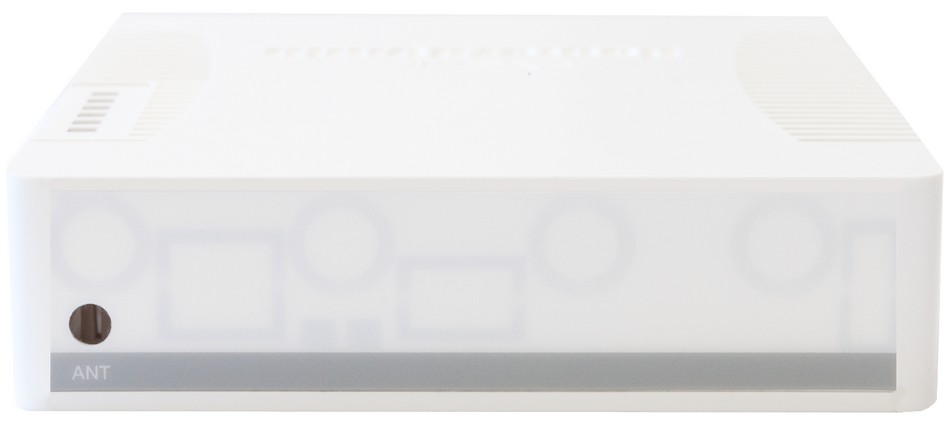

Chain1: 1 integrated antenna for RX & TX, 1 MMCX connector

Note:
To enable the external MMCX connector, set „antenna mode: antenna-b” in RouterOS wireless settings, in the HT tab of Winbox. Enabling the external antenna disables the built-in Chain1 antenna.
