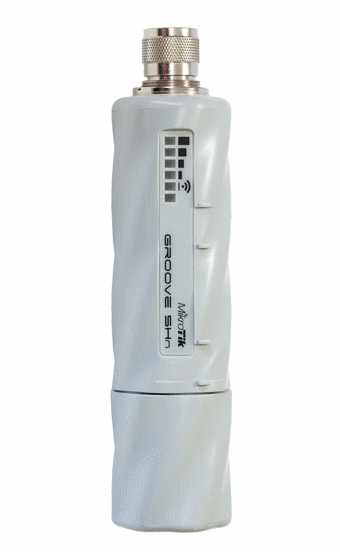

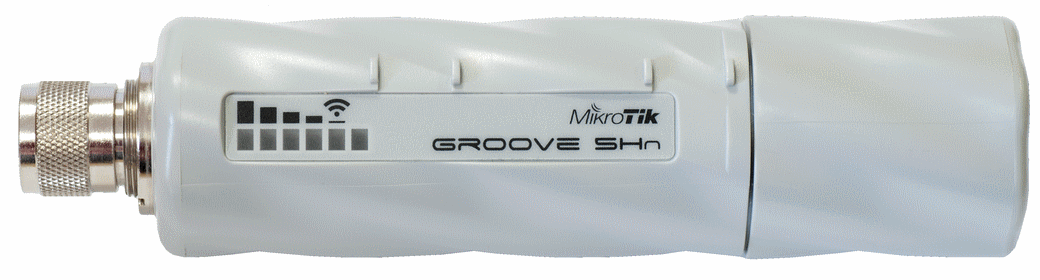

MikroTik RouterBOARD RB/Groove 5Hn

Discontinued item, only while stocks last!

RouterBOARD Groove 5Hn, 400MHz, 32MB, 1*10/100BaseT, 1*802.11a/n 1*1 MIMO, L3

Architecture: MIPS-BE
CPU: AR7241, 400MHz
Memory: 32MB DDR SDRAM onboard memory
Data storage: NAND onboard memory chip
Ethernet:
- 10/100BaseT: 1 ports with Auto-MDI/X
- 10/100/1000BaseT: none
- SFP-Slot: none
- Ethernet bypass: none
Hardware switch support: none
Onboard wireless chip: 1 * Atheros 5GHz 802.11a/n, 1x1 MIMO with 16kV ESD protection on RF port
Extension Slots:
- Mini PCI: none
- Mini PCI-E: none
- USB: none
- Memory cards: none
Serial port: none
Extras: Reset switch, Beeper
LEDs: 5 wireless signal LEDs, ethernet activity LED (configurable)
Power options:
- Jack: None
- PoE: 8-30VDC on Ether1 (not 802.3af conform)
Power consumption: max. 5W
Sensors:
- Voltage monitor: yes
- PCB temperature monitor: none
- CPU temperature monitor: yes
Dimensions: 44mm x 177mm x 44mm
Temperature range: -30°C ... +70°C
MikroTik RouterOS License: Level 3

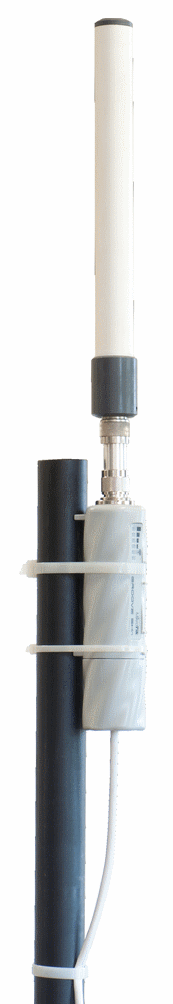

Package includes: RouterBOARD system with mounting loops, PoE injector, power adapter in retail packaging

Onboard wireless features:
RX sensitivity:
- 802.11a: -93 dBm @ 6Mbps to -77 dBm @ 54 Mbps
- 802.11n: -93 dBm @ MCS0 to -71 dBm @ MCS7
TX power:
- 802.11a: 23dBm @ 6Mbps to 19dBm @ 54 Mbps
- 802.11n: 22dBm @ MCS0 to 15dBm @ MCS7
Modulations:
- OFDM: BPSK, QPSK, 16 QAM, 64QAM
- DSSS: DBPSK, DQPSK, CCK

Antenna specifications:
No integrated antenne, N-Type male connector for direct connection to existing antenna.
