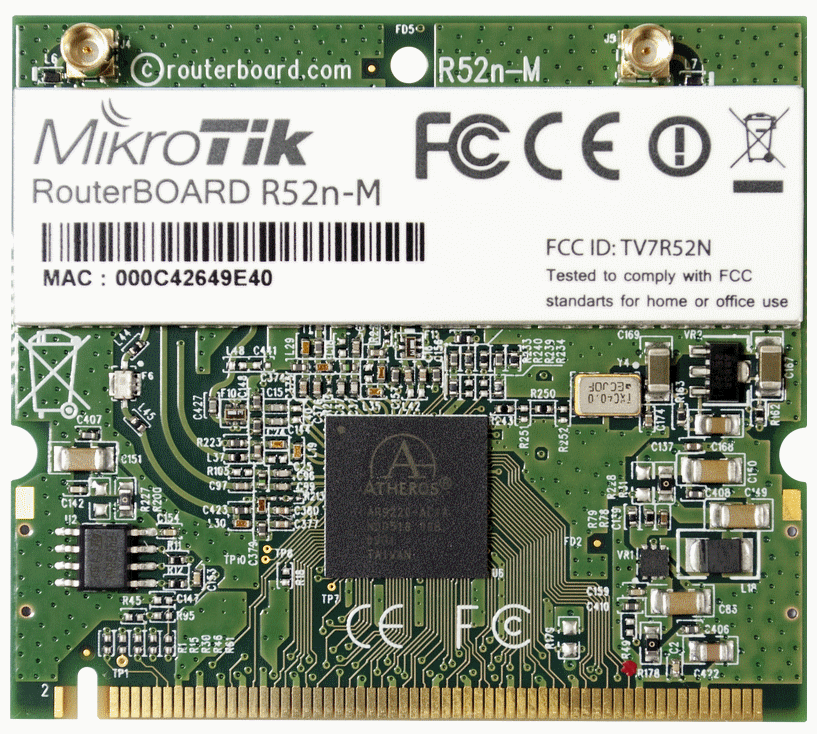

802.11a/b/g/n, Mini-PCI, R52nM, 23dBm, 200mW, 2*2 MIMO, MMCX

The RouterBOARD R52n-M miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. This card features the sturdy MMCX connectors for higher durability. Adding Wireless N to your Wireless device, it provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming.
Dual band IEEE 802.11a/b/g/n standard
Output Power of up to 23dBm
Support for up to 2x2 MIMO with spatial multiplexing
Atheros AR9220, chipset
High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption
Two MMCX antenna connectors
Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK
Operating temperatures: -50ºC to 60ºC
Power consumption MAX 1.95W
ESD protection +/- 12kV
Ausgangsleistung / Empfangsempfindlichkeit
802.11a:
21dBm / -95dBm @ 6Mbps
17dBm / -80dBm @ 54Mbps
802.11b:
20dBm / -95dBm @ 1Mbps
21dBm / -91dBm @ 11Mbps
802.11g:
23dBm / -95dBm @ 6Mbps
19dBm / -81dBm @ 54Mbps
802.11n 5GHz:
Modulation Coding Scheme (MCS) 0
21dBm / -95dBm @ 20MHz Bandbreite
19dBm / -92dBm @ 40MHz Bandbreite
Modulation Coding Scheme (MCS) 7
16dBm / -77dBm @ 20MHz Bandbreite
13dBm / -74dBm @ 40MHz Bandbreite
802.11n 2.4GHz
Modulation Coding Scheme (MCS) 0
21dBm / -95dBm @ 20MHz Bandbreite
21dBm / -90dBm @ 40MHz Bandbreite
Modulation Coding Scheme (MCS) 7
17dBm / -78dBm @ 20MHz Bandbreite
16dBm / -75dBm @ 40MHz Bandbreite
