MikroTik RouterBOARD RB/OmniTikU-5HnD

RouterBOARD OmniTik U-5HnD, 400MHz, 32MB, 5*10/100BaseT, 1*802.11a/n 2*2 MIMO, 2*7.5dBi Ant. h/v, 1*USB, L4

Architecture: MIPS-BE
CPU: AR7241, 400MHz
Memory: 32MB DDR SDRAM onboard memory
Data storage: NAND onboard memory chip

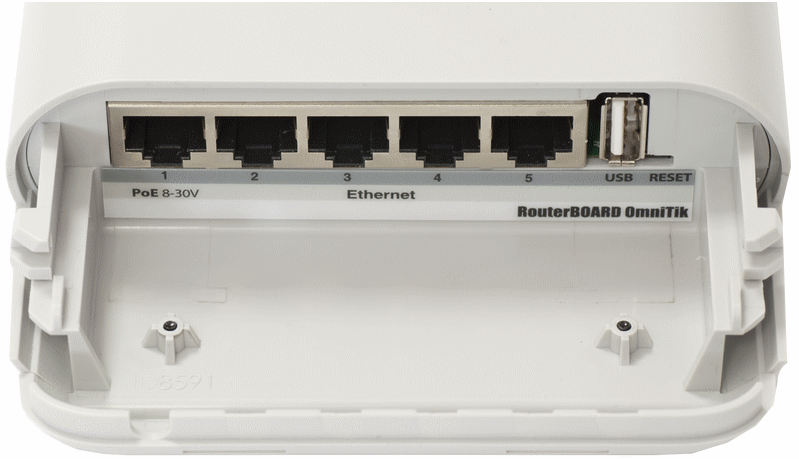

Ethernet:
- 10/100BaseT: 5 ports with Auto-MDI/X
- 10/100/1000BaseT: none
- SFP-Slot: none
- Ethernet bypass: none
Hardware switch support: yes, Atheros7240 for Eth2 ... Eth5
Onboard wireless chip: 1 * Atheros 5GHz 802.11a/n, 2x2 MIMO with 16kV ESD protection on RF port
Extension Slots:
- Mini PCI: none
- Mini PCI-E: none
- USB: 1 jack, Type A, 5VDC power out
- Memory cards: none
Serial port: none
Extras: Reset switch, Beeper

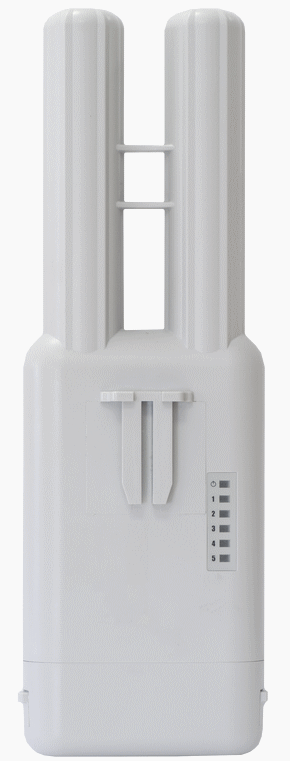

LEDs: Power, 5 programmable LEDs (Ethernetactivity by default)
Power options:
- Jack: None
- PoE: 8-30VDC on Ether1 (not 802.3af conform)
Power consumption: max. 5W
Sensors:
- Voltage monitor: yes
- PCB temperature monitor: none
- CPU temperature monitor: yes
Dimensions: 125mm x 368mm x 55mm
Temperature range: -30°C ... +70°C
MikroTik RouterOS License: Level 4
Package includes: RouterBOARD system with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter in retail packaging

Onboard wireless features:
RX sensitivity:
- 802.11a: -96 dBm @ 6Mbps to -80 dBm @ 54 Mbps
- 802.11n: -96 dBm @ MCS0 to -77 dBm @ MCS7
TX power:
- 802.11a: 26dBm @ 6Mbps to 22dBm @ 54 Mbps
- 802.11n: 25dBm @ MCS0 to 19dBm @ MCS7
Modulations:
- OFDM: BPSK, QPSK, 16 QAM, 64QAM
- DSSS: DBPSK, DQPSK, CCK

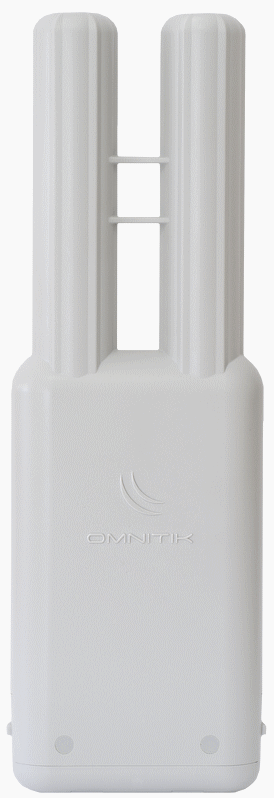

Antenna specifications:
Type: 2 * Omni 5GHz antenna
Polarization: Channel0 horizontal, Channel1 vertical
Gain: each 7.5dBi (+/-1dBi)
